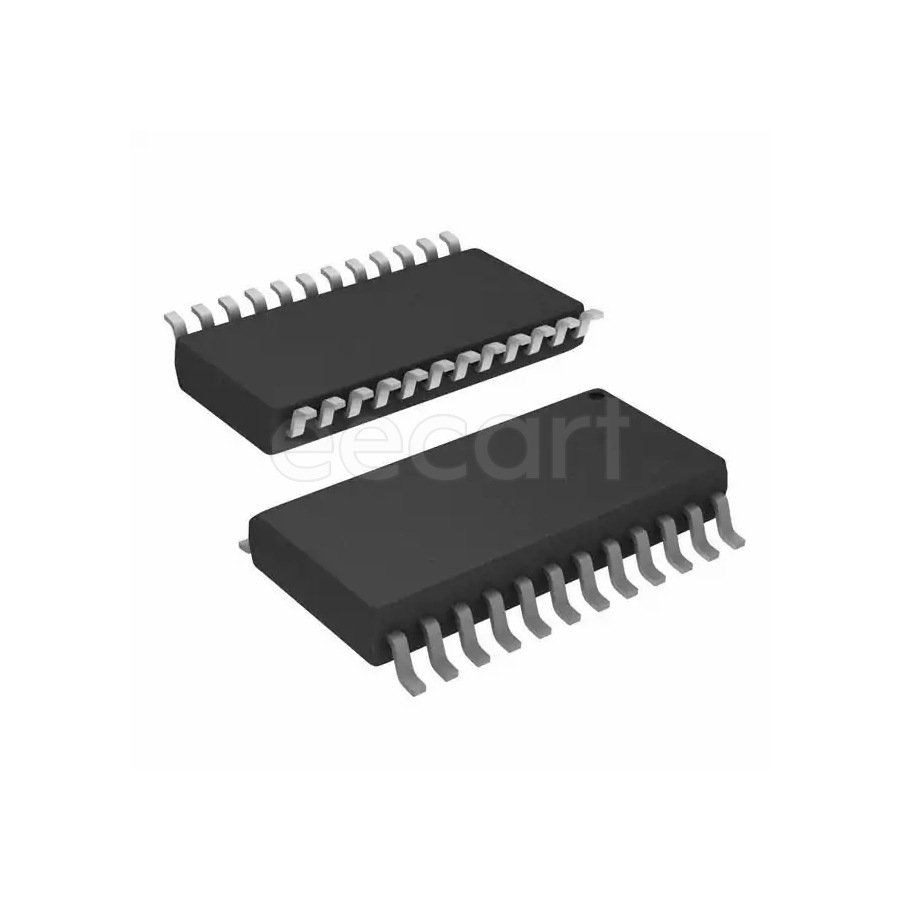

SN74HCT652DW
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74HCT652DW
Datasheet:
Description:
Buffers, Drivers, Resceivers and Transceivers SOIC-24 SMD/SMT 3-State
| Parameter | Value |
|---|---|
| Length | 15.4 mm |
| Width | 7.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Height | 2.65 mm |
| Packaging | Tube |
| Thickness | 2.35 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Number of Circuits | 8 |
| Operating Supply Voltage | 5 V |
| Output Type | 3-State |
| Lifecycle Status | Active |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Number of Channels | 8 |
| Number of Bits | 8 |
| Turn-On Delay Time | 82 ns |
| Operating Supply Current | 80 µA |
| Propagation Delay | 53 ns |
| High Level Output Current | -6 mA |
| Low Level Output Current | 6 mA |
| Logic Function | Inverting, Transceiver |
| Number of Bits per Element | 8 |
| Direction(Counting Sequence) | Bidirectional |
| Number of Outputs | 8 |
| Number of Output Lines | 8 |
| Number of Input Lines | 8 |
Stock: 185
Distributors
pcbx
pcbxUnit Price$1.60214
Ext.Price$1.60214
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.60214 | $1.60214 |
| 10 | $1.19519 | $11.95190 |
| 25 | $1.08234 | $27.05850 |
| 50 | $1.02482 | $51.24100 |
| 100 | $0.97034 | $97.03400 |
| 300 | $0.92840 | $278.52000 |
| 500 | $0.88827 | $444.13500 |
| 1000 | $0.88229 | $882.29000 |
| 3000 | $0.86327 | $2589.81000 |
| 5000 | $0.84467 | $4223.35000 |
